20-30HP Aluminum 10 1/4 × 11 Outboard Prop for Suzuki

Availability:
Quantity:
  • 10 1/4 × 11

  • Suzuki

  • 58100-96420-019

Product Description

SIZE PROPELLERS AVAILABLE:Aluminum outboard prop

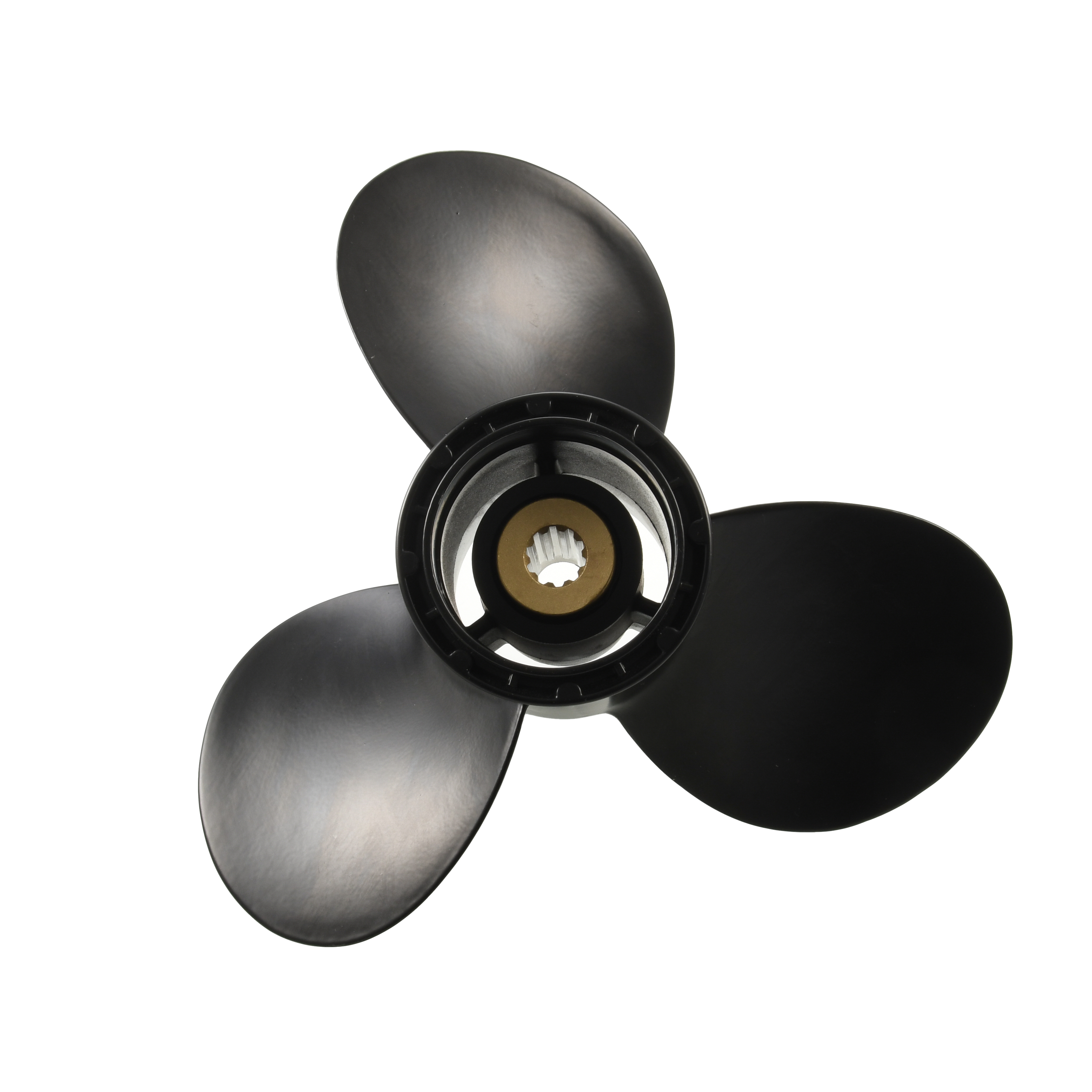

Aluminum Outboard Propeller 10 1/4 × 11 for Suzuki Outboard Engine 25-30HP RH 10 Tooth Spline

Color: Black

SUITS:

20-30HP
   3" Gearcase
   DT20...1983-1988
   DT25/25C...1983-2000
   DF25(V-twin)...2000-newer
   DF25R...2010-newer
   DF25A...2014-newer
   DT30/30C...1983-1997
   DF30...2000-2007
   DF30A...2014-newer

MATERIAL:Aluminum

BLADES:3

PROP ROTATION:Right

PAYMENT:Pay Pal, Credit Card or Bank Deposit


Refer   to the adaptive model Similar to OEM   No Description Hub Type Blade Diam Pitch Rotation Flish No
20-30HP
    3" Gearcase
    DT20...1983-1988
    DT25/25C...1983-2000
    DF25(V-twin)...2000-newer
    DF25R...2010-newer
    DF25A...2014-newer
    DT30/30C...1983-1997
    DF30...2000-2007
    DF30A...2014-newer
58100-96410-019 B   GROUP
    10 tooth spline
Pressed   in 3 10 1/4 10 RH S-20A310R-10
58100-96420-019 3 10 1/4 11 RH S-20A310R-11
58100-96430-019 3 10 1/4 12 RH S-20A310R-12
58100-96490-019 3 10 1/4 13 RH S-20A310R-13
58100-95D00-019 3 10 1/4 14 RH S-30A310R-14
58100-96460-019 3 10 1/4 15 RH S-30A310R-15
Knowledge

In a large-tonnage ship, the larger the propeller, the better the power, yes.


To see the size of the ship, engine output power, high waterline, ship fluid resistance and many other factors, generally high-speed small propellers, low-speed large propellers, the former is suitable for ships with smaller tonnage 800rpm per minute, the latter 300-450 rpm, if the engine power is smaller medium freighters are generally 300 rpm, in fact, the higher the speed, the better mainly depends on the output power of the engine and the structure of the propeller will not waste power, Assuming that even if the power of the engine is high, the speed is high, and the blades are large, but the blade design is not suitable for high-speed water flow structures.


The displacement of the propeller is proportional to the speed of the ship, the propeller is a propulsion device, through its own rotation to generate a backward force of water, on the contrary, the ship will receive a forward force, this is the propeller propulsion.


The following factors affect the speed of the boat

First: the direction of the water flow and the speed of the water flow

Second: the size and number of propeller blades

Third: propeller speed

Fourth: the weight of the ship
