58133-ZV7-012AH
Flishpropeller
58133-ZV7-012AH

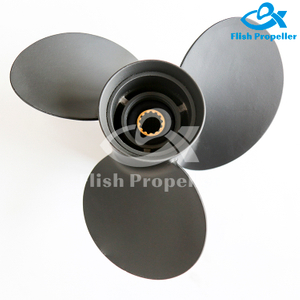

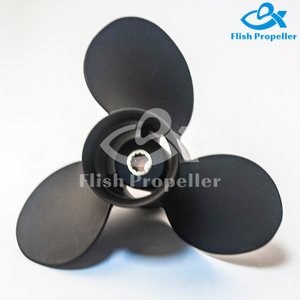

Description
Number of Blades: 3, Thrust Hub Exhaust, Rubber Hub System Built In-REQUIRES NO HUB KIT
Material: Aluminum Alloy
Color: White
Spline: 10,Fits 10Tooth Spline Propeller Shaft
Number of Blades: 3
Rotation: Right Hand rotation (Standard Clockwise Rotation), Hub: Included (Pressed-in)
Specifications
Refer to the adaptive model | Similar to OEM No | Description | Hub Type | Blade | Diam | Pitch | Rotation | Flish No |
25-30HP 3" Gearcase BF 25hp…1994-newer BF 30hp…1995-newer | 58133-ZV7-012AH | B GROUP 10 tooth spline | Pressed in | 3 | 9.9 | 12 | RH | H-25S301R-12 |
58133-ZV7-013AH | 3 | 9.9 | 13 | RH | H-25S301R-13 | |||
/ | 4 | 9.9 | 9 | RH | H-25S401R-09 | |||
/ | 4 | 9.9 | 10 | RH | H-25S401R-10 |
Application
Small motor boats, fishing boats, yachts, caution boats, motor boat.
Workshop
Total Area: 5,800 square meters
Mechanical Processing Equipment: more than 20 sets
Rated Loading Capacity of Bridge Crane: 150 metric tons
Max. Lifting Height of Bridge Crane: 20 meters
No. of Test Stands: 11 sets
Independent physical and chemical laboratory
Quality inspection capability of mechanical properties and nondestructive flaw detection
Packaging&Delivery
Packing detail: | Standard export packing, or according to client's requirements. |
Delivery detail: | Have a lot of stock,Shipped in 15-25 days after payment. |
Description
Number of Blades: 3, Thrust Hub Exhaust, Rubber Hub System Built In-REQUIRES NO HUB KIT
Material: Aluminum Alloy
Color: White
Spline: 10,Fits 10Tooth Spline Propeller Shaft
Number of Blades: 3
Rotation: Right Hand rotation (Standard Clockwise Rotation), Hub: Included (Pressed-in)
Specifications
Refer to the adaptive model | Similar to OEM No | Description | Hub Type | Blade | Diam | Pitch | Rotation | Flish No |
25-30HP 3" Gearcase BF 25hp…1994-newer BF 30hp…1995-newer | 58133-ZV7-012AH | B GROUP 10 tooth spline | Pressed in | 3 | 9.9 | 12 | RH | H-25S301R-12 |
58133-ZV7-013AH | 3 | 9.9 | 13 | RH | H-25S301R-13 | |||
/ | 4 | 9.9 | 9 | RH | H-25S401R-09 | |||
/ | 4 | 9.9 | 10 | RH | H-25S401R-10 |
Application
Small motor boats, fishing boats, yachts, caution boats, motor boat.
Workshop
Total Area: 5,800 square meters
Mechanical Processing Equipment: more than 20 sets
Rated Loading Capacity of Bridge Crane: 150 metric tons
Max. Lifting Height of Bridge Crane: 20 meters
No. of Test Stands: 11 sets
Independent physical and chemical laboratory
Quality inspection capability of mechanical properties and nondestructive flaw detection
Packaging&Delivery
Packing detail: | Standard export packing, or according to client's requirements. |
Delivery detail: | Have a lot of stock,Shipped in 15-25 days after payment. |
