663-45958-01-EL
Flishpropeller
Y-40C113-14

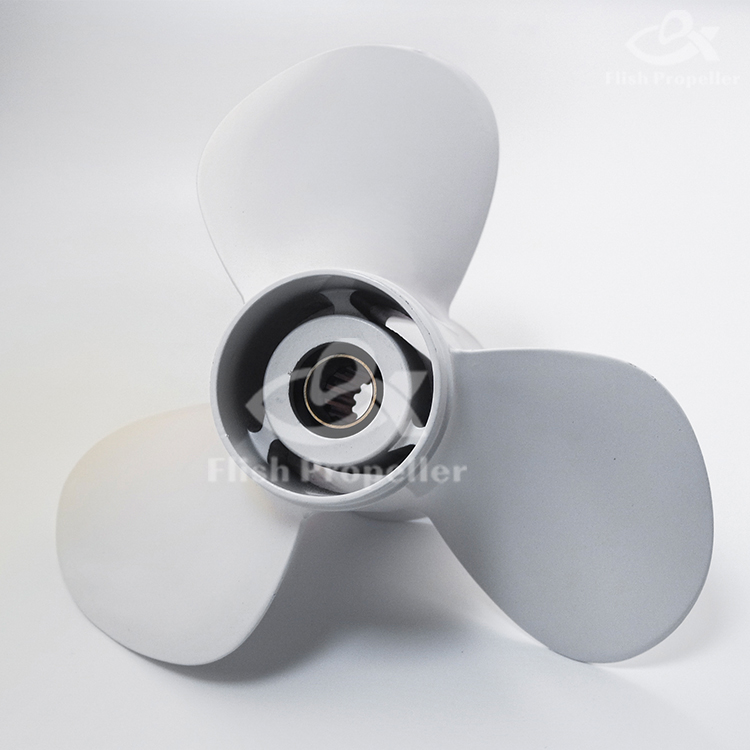

Description
Number of Blades: 3, Thru Hub Exhaust, Rubber Hub System Built In-REQUIRES NO HUB KI
Material: Aluminum
Color: White
Spline: Pin Drive
Number of Blades: 3
Rotation: Right Hand rotation (Standard Clockwise Rotation), Hub: Included (Pressed in)
Specifications
| Refer to the adaptive model | Similar to OEM No | Description | Hub Type | Blade | Diam | Pitch | Rotation | Flish No |
| 25-60HP 3-1/2" Gearcase T25hp...2010-newer F30(4 stroke)...2001-2005 40hp(C40)...1984-newer 48hp...1995-2000 50hp(Not T50)...1984-newer F40(4 stroke)...1999-newer F50(4 stroke)...1995-newer 55hp...1976-1995 60hp...1976-1991 F60(4 stroke)...1999-newer | 663-45956-01-EL | C GROUP 13 tooth spline | Pressed in | 3 | 12 1/4 | 9 | RH | Y-25A312R-09 |
| 663-45954-01-EL | 3 | 11 3/4 | 10 | RH | Y-25A311R-10 | |||
| 69W-45947-00-EL | 3 | 11 5/8 | 11 | RH | Y-25A311R-11 | |||
| 663-45952-02-EL | 3 | 11 3/8 | 12 | RH | Y-60A311R-12 | |||
| 69W-45945-00-EL | 3 | 11 1/8 | 13 | RH | Y-60A313R-13 | |||
| 663-45958-01-EL | 3 | 11 1/4 | 14 | RH | Y-25A311R-14 | |||
| 69W-45943-00-EL | 3 | 11 | 15 | RH | Y-25A315R-15 | |||
| / | 3 | 10 5/8 | 12 | RH | Y-60A313R-12 | |||
| / | 3 | 10 3/8 | 13 | RH | Y-60A310R-13 | |||
| / | 3 | 10 1/2 | 13 | RH | Y-25A313R-13 | |||
| / | 3 | 10 3/8 | 14 | RH | Y-60A310R-14 | |||
| / | 3 | 10 1/4 | 14 | RH | Y-60A313R-14 | |||
| / | 4 | 10 5/8 | 12 | RH | Y-60A413R-12 | |||
| / | 4 | 10 3/8 | 13 | RH | Y-60A413R-13 |
Application
Small motor boats, fishing boats, yachts, caution boats, motor boat.
Workshop
Total Area: 5,800 square meters
Mechanical Processing Equipment: more than 20 sets
Rated Loading Capacity of Bridge Crane: 150 metric tons
Max. Lifting Height of Bridge Crane: 20 meters
No. of Test Stands: 11 sets
Independent physical and chemical laboratory
Quality inspection capability of mechanical properties and nondestructive flaw detection
Packaging&Delivery
| Packing detail: | Standard export packing, or according to client's requirements. |
| Delivery detail: | Have a lot of stock,Shipped in 15-25 days after payment. |
