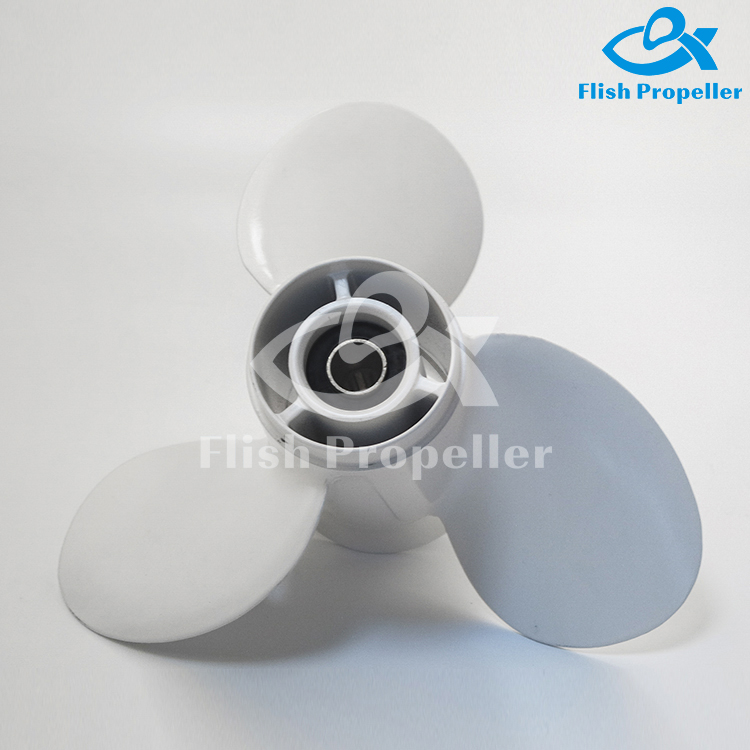

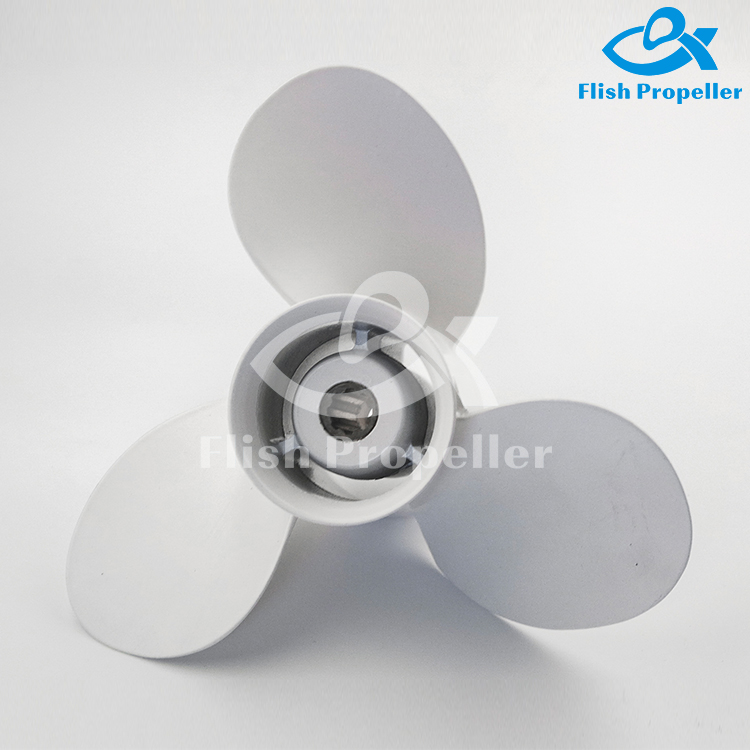

63V-45945-10-EL
Flishpropeller
63V-45945-10-EL
Description
Number of Blades: 3, Thru Hub Exhaust, Rubber Hub System Built In-REQUIRES NEED HUB KIT
Material: Aluminum
Color: White
Spline: 8,Fits 8Tooth Spline Propeller Shaft
Number of Blades: 3
Rotation: Right Hand rotation (Standard Clockwise Rotation), Hub: Included (Interchangeable hub)
Feature
Although our company is a newly developed company, but we have developed related industries for four years, so we have enough experience and foundation to develop ourselves in the field of propeller. We have our own price advantage, and the quality is higher than other suppliers. Just use our product once, you will realize our brand advantage.
We have our own base in the beautiful coastal city of Qingdao, and we have our own testing methods and continuous improvement of technology. Now we could offer a variety of propeller products to satisfy a wide range of engine and hull configuration . We sincerely expect to cooperation with you .
Precautions for propeller:
1. Selecting propeller usually takes precedence over the size of propeller with original machine.
2. The pitch of propeller is the most important parameter of ship speed, followed by diameter. As the name implies, the bigger the pitch, the faster the speed! But we should also follow the following points: the ship's own weight, or heavy load to use small pitch propeller, ship light, speed fans can choose large pitch, the bottom of the V, deep V and shallow V will also affect the speed of the ship!
Propeller is a vulnerable component. There are several points for attention in the use of propeller.
1. Rubber sleeve is used for shock absorption and protection of gear box. It can relieve vibration at the moment of engine start-up by rubber sleeve. When the propeller rotates at high speed, it encounters reefs, wood, or entangled with ropes and fishing nets, reaching a certain limit. Rubber sleeve will slip to protect the engine. Drive shaft and gearbox assembly! So the propeller can not be used for a long time under load or overload, which will cause damage to the engine!
2. The blade of the propeller bends or breaks when it is impacted violently. In this case, please put out the fire immediately, stop traveling, hoist the machine to check the damage of the propeller, then rekindle the engine, check whether the engine is damaged or not. If you can start and sail, please come ashore immediately or go to the nearest maintenance station to repair the machine professionally and replace the propeller.
There is a big gap between water navigation and land travel climate and rescue. For your safe travel, we sincerely recommend that customers have spare propellers and propeller fittings on board! Be prepared for a rainy day.
Specifications
| Refer to the adaptive model | Similar to OEM No | Description | Hub Type | Blade | Diam | Pitch | Rotation | Flish No |
| 9.9-15HP 2-1/2" Gearcase T8, T9.9...all years F9.9(4 stroke)...2000-2007 F15(4 stroke)...1998-newer F20(4 stroke)...2007-newer 9.9hp(2 stroke)...1984-2009 15hp(2 stroke)...1984-2009 F15C...2007-newer F20(4 stroke)...2007-newer | 63V-45947-00-EL | A GROUP 8 tooth spline | Pressed in | 3 | 9 1/4 | 8 | RH | Y-9A889R-08 |
| 63V-45945-10-EL | 3 | 9 1/4 | 9 | RH | Y-15A398R-09 | |||
| 63V-45952-10-EL | 3 | 9 1/4 | 10 | RH | Y-9A310R-10 | |||
| 63V-45943-10-EL | 3 | 9 1/4 | 11 | RH | Y-9A311R-11 | |||
| 683-45947-00-EL | 3 | 9 1/4 | 8 | RH | Y-9A308R-08 | |||
| 683-45945-00-EL | 3 | 9 1/4 | 9 | RH | Y-15A309R-09 | |||
| 683-45952-00-EL | 3 | 9 1/4 | 9 3/4 | RH | Y-15A308R-09 | |||
| 683-45941-00-EL | 3 | 9 1/4 | 12 | RH | Y-9A308R-12 |
Application
Small motor boats, fishing boats, yachts, caution boats, motor boat.
Workshop
Total Area: 5,800 square meters
Mechanical Processing Equipment: more than 20 sets
Rated Loading Capacity of Bridge Crane: 150 metric tons
Max. Lifting Height of Bridge Crane: 20 meters
No. of Test Stands: 11 sets
Independent physical and chemical laboratory
Quality inspection capability of mechanical properties and nondestructive flaw detection
Packaging&Delivery
| Packing detail: | Standard export packing, or according to client's requirements. |
| Delivery detail: | Have a lot of stock,Shipped in 15-25 days after payment. |
